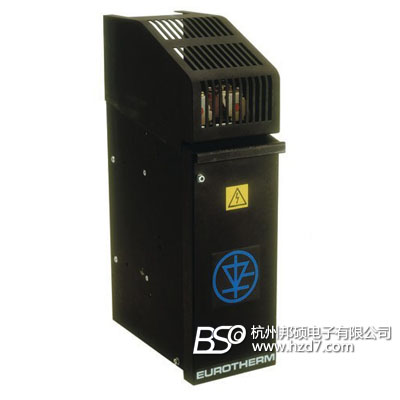

欧陆eurotherm TC2000/TC2001三相两控可控硅调整器
产品编号：14024-785
产品型号：TC2000/TC2001
市场价格：0元/台
批发价格：0元/台
更新时间：2011.03.24
浏览次数：
详细信息
|
Features
|
 |
60-500 amps, 500Vac, max.| The TC2000 series is available as a Solid State Contactor or an SCR Power Controller. Each can be configured to control three phase two-leg resistive loads (three-wire delta or wye) or two independent single phase resistive loads. The TC2000 can accept a logic input (AC or DC) or an analog or potentiometer input. The TC2000 is a compact back-panel mounted unit with a fold-down front door for easy configuration access. Units above 100 amp are fan cooled. | Units are equipped with such protective features as high speed fuses with optional fuse failure microswitch, varistors, and grounded heat sinks. The TC2000 is insensitive to phase rotation of the supply and self synchronizes to the line frequency. It has a partial load unbalance sensing option with an alarm relay to annunciate a change in any leg of >10%. | ||||
